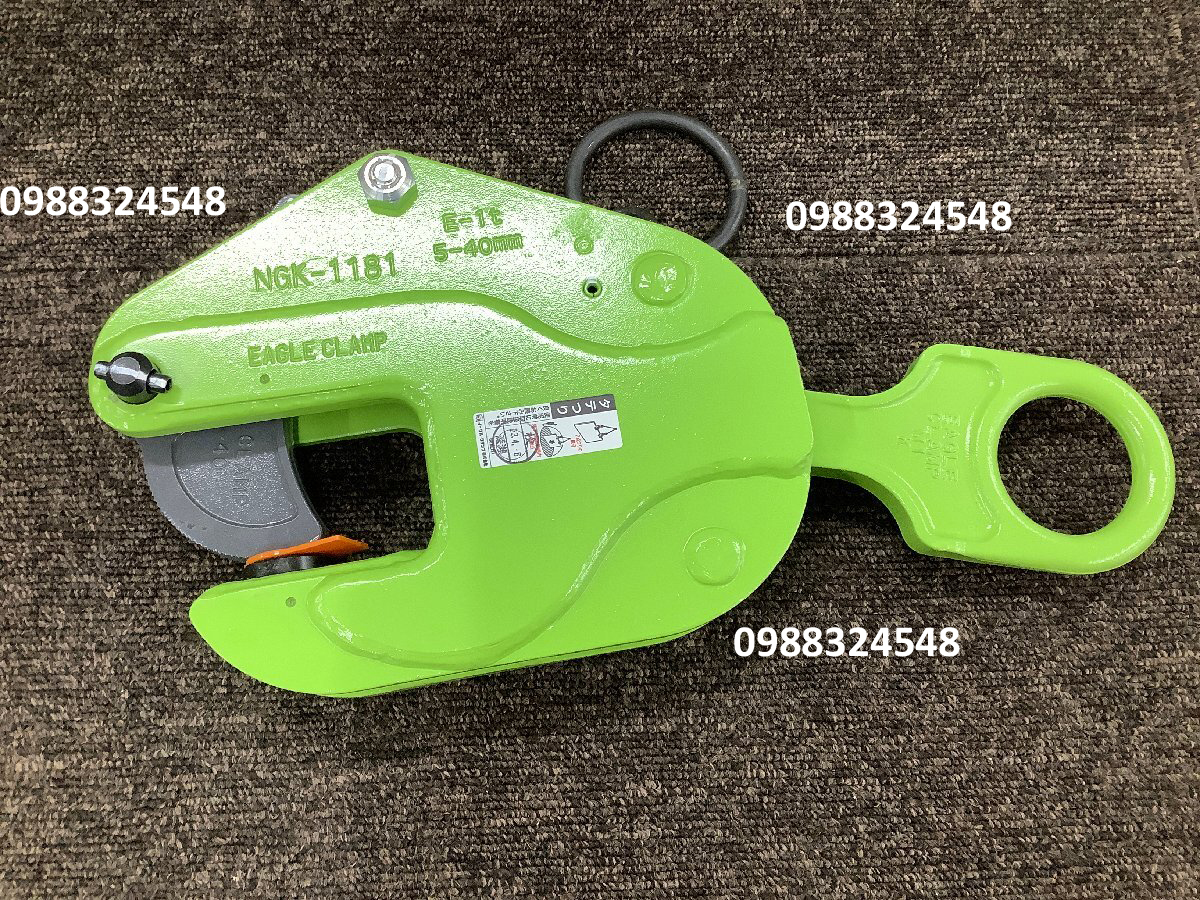

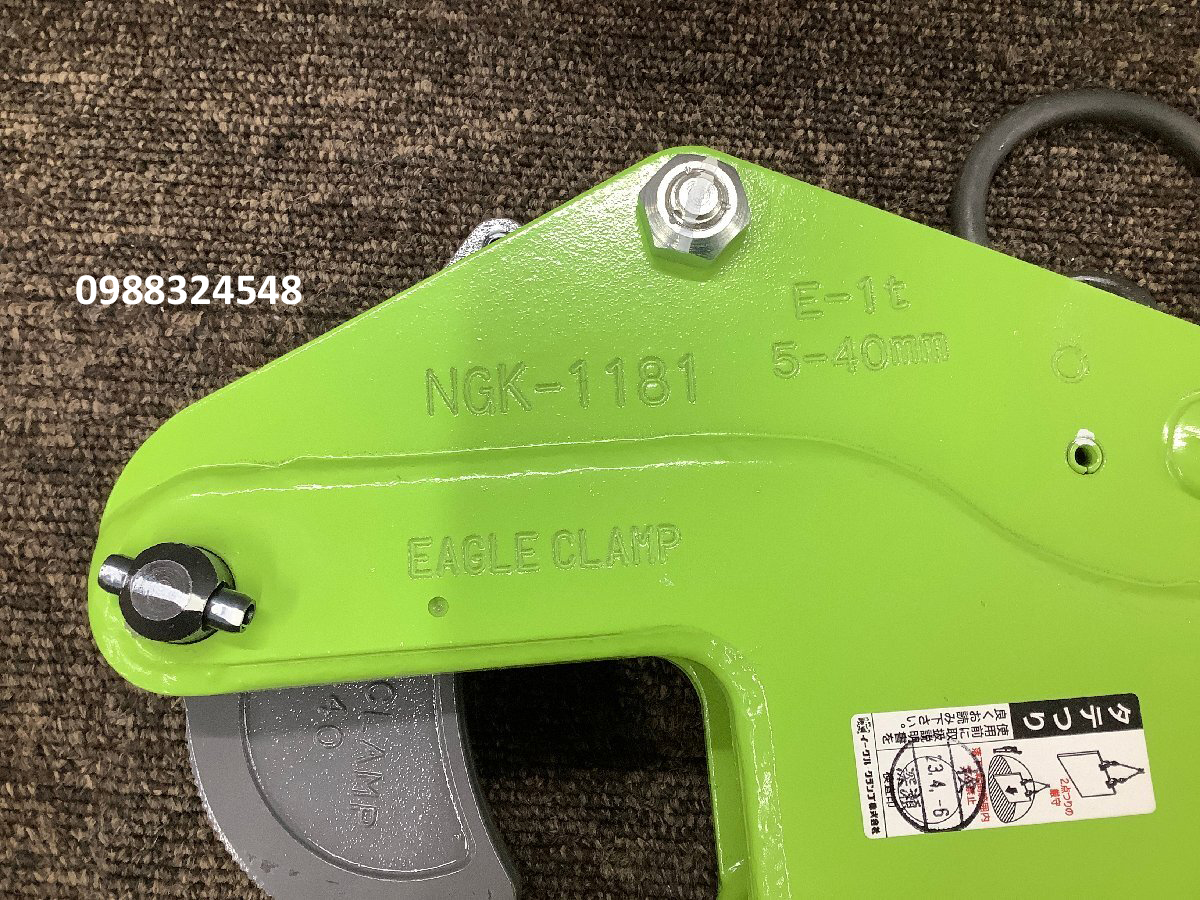

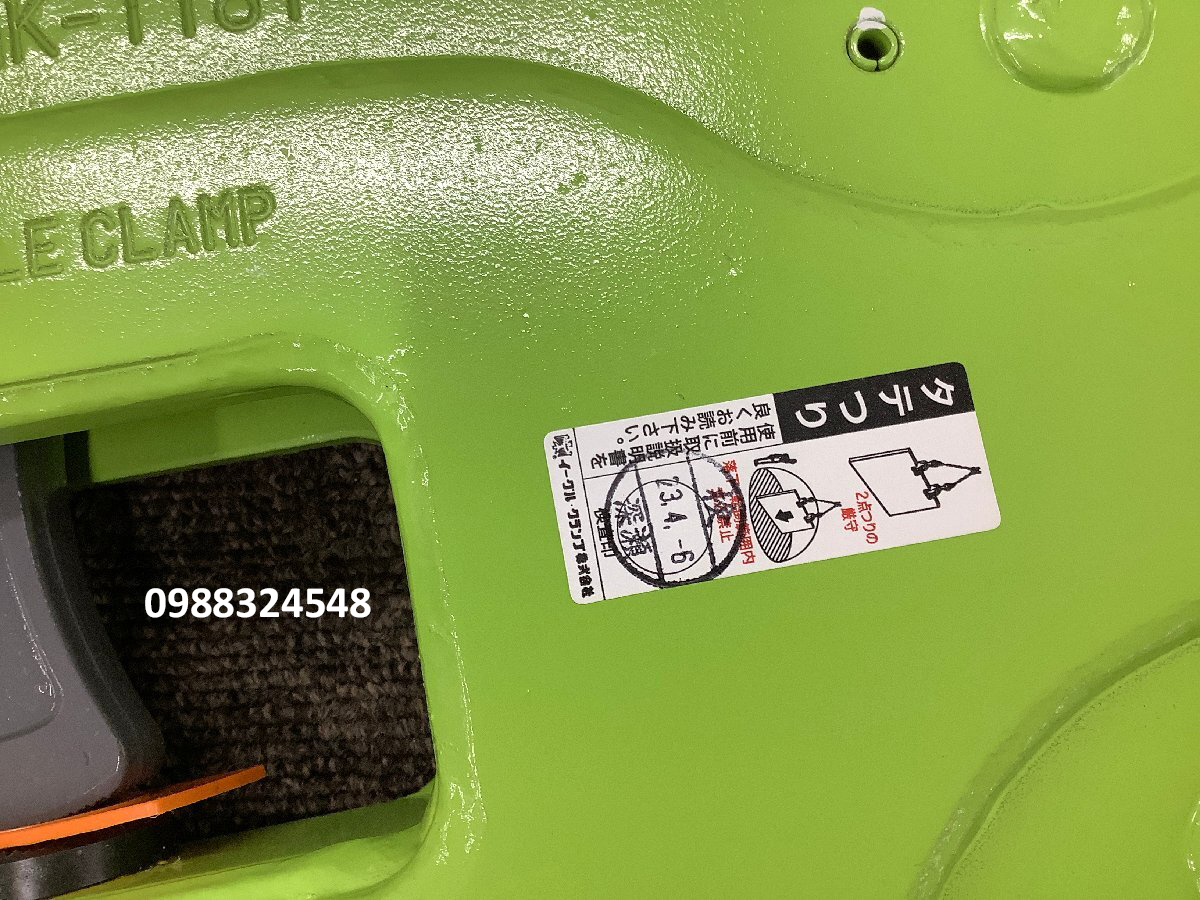

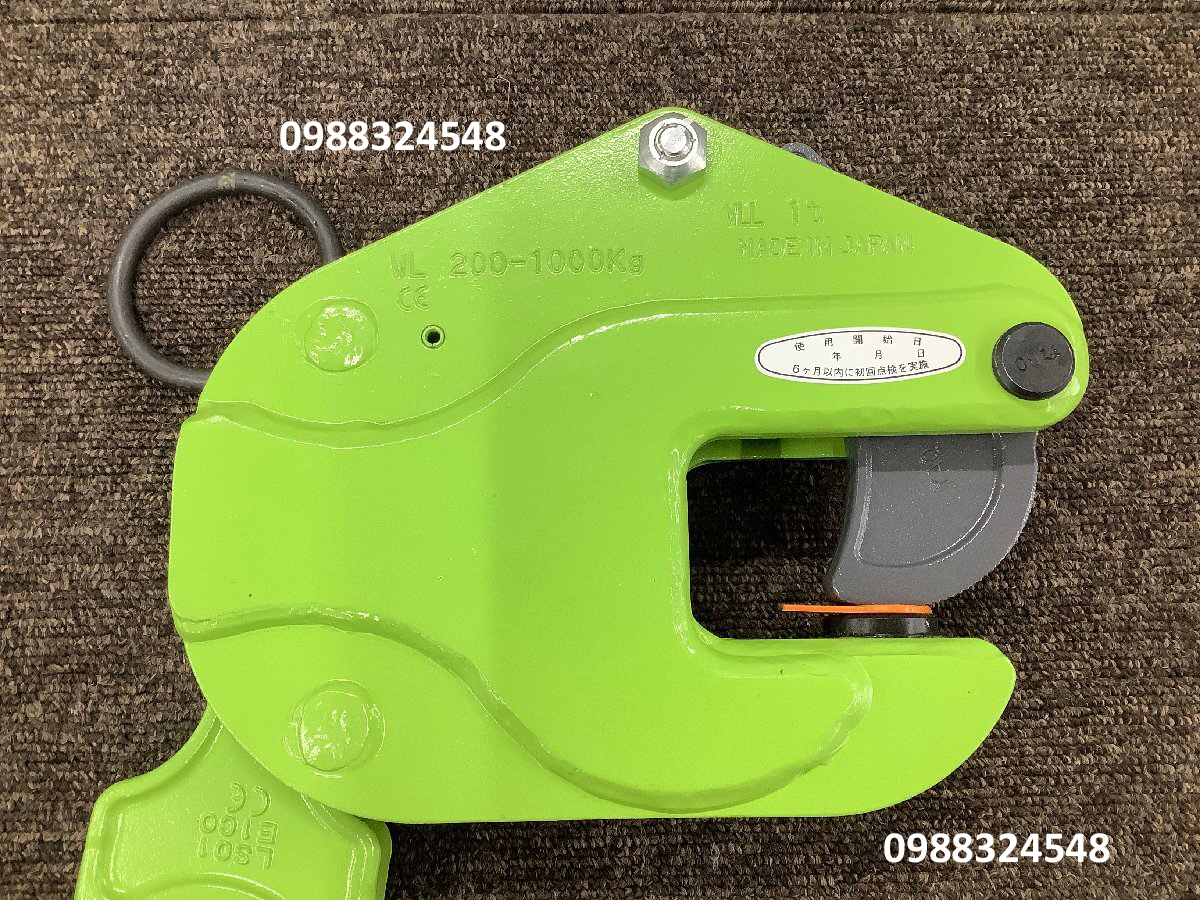

Kẹp tôn đứng 1 tấn Eagle E-1 / E-1 Eagle Vertical Clamp

Kẹp tôn đứng 1 tấn Eagle E-1 / E-1 Eagle Vertical Clamp

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: E-1
  • Tải trọng: 1 tấn
  • Độ mở miệng: 5-40mm
  • Khối lượng: 6.5 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Eagle Clamp Co., Ltd

Tags:

E Series Eagle Vertical Clamp

  • Lightweight clamp primarily designed for the vertical lifting of steel plates.
  • The spring-loaded tightening lock mechanism assures a positive initial clamping force even at no load condition
  • The universal shackle allows the cam to generate a clamping force on the work piece no matter which direction it is pulled.
  • The clamping force increases in proportion to the weight of the load.
  • High-frequency quenching of die-forged special alloy steels gives greater durability to the cam.

    • E-1 Eagle Vertical Clamp

    Model E-1
    Jaw Opening 5 - 40 mm
    Capacity 200Kgs - 1 Ton
    Net weight 6.5 kg

    E Series Eagle Vertical Clamp Instruction Manual
