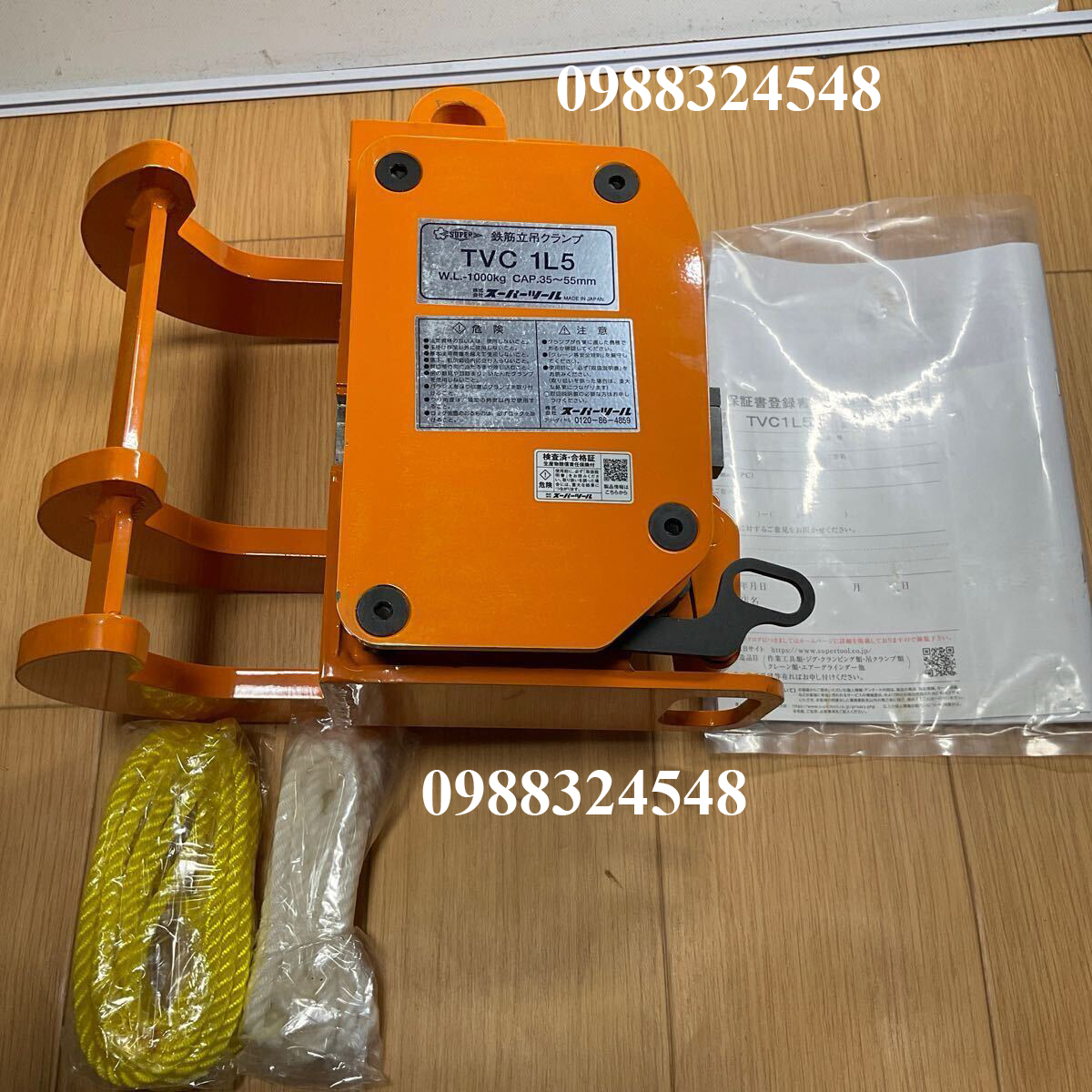

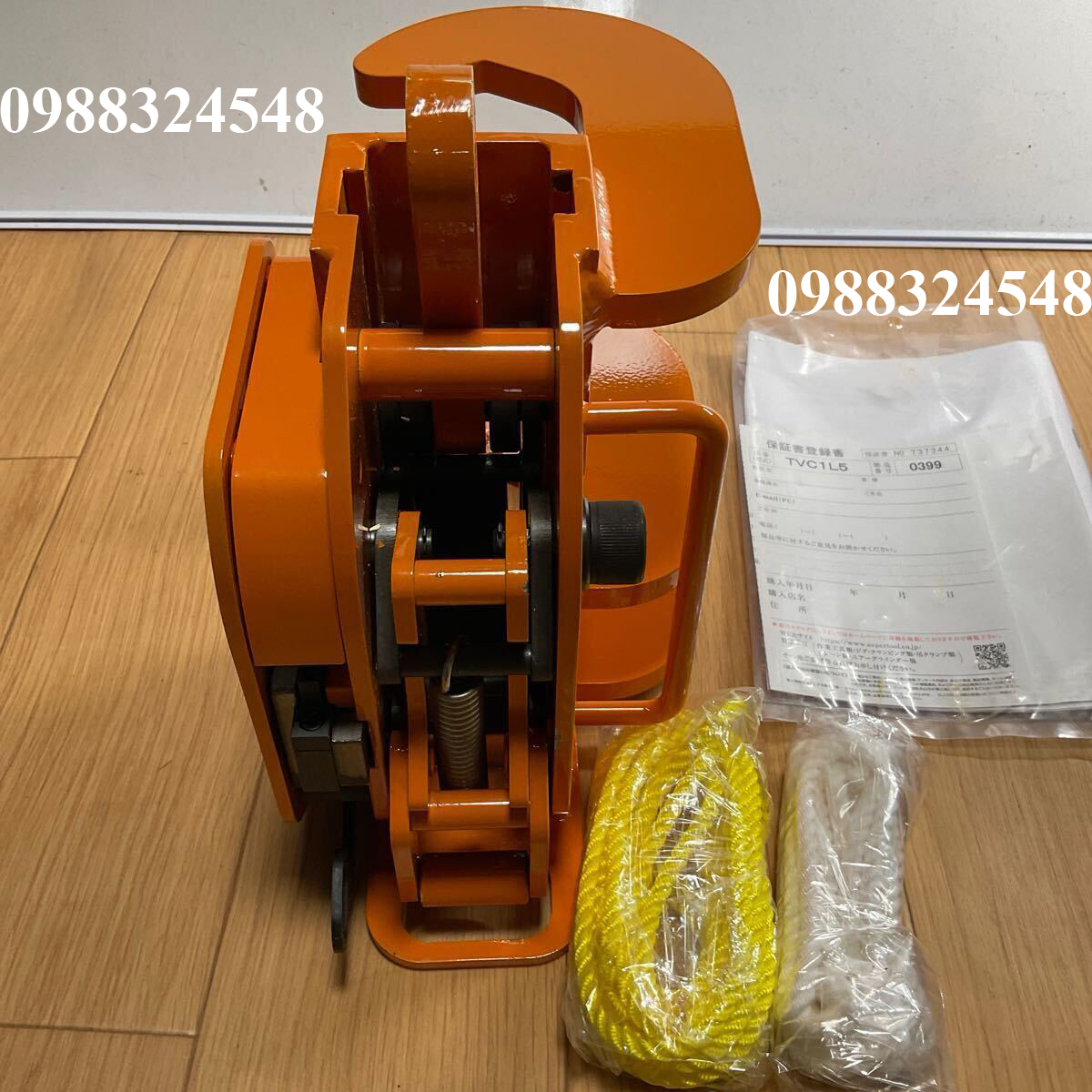

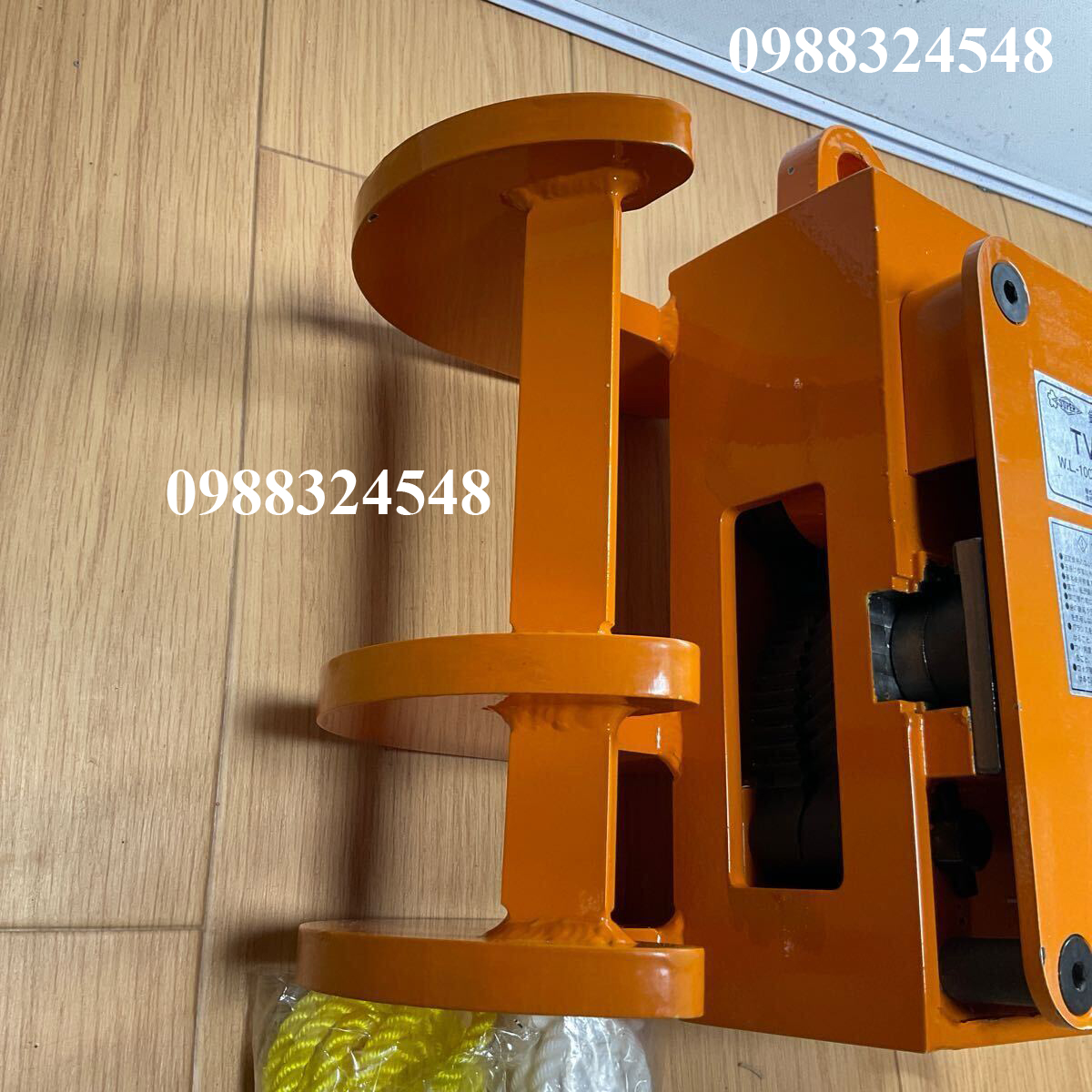

Kẹp nâng thép thẳng đứng Supertool TVC-1L5 / TVC-1L5 Supertool VERTICAL LIFTING CLAMP for Reinforcing Rod (Double-Lock Type)

Kẹp nâng thép thẳng đứng Supertool TVC-1L5 / TVC-1L5 Supertool VERTICAL LIFTING CLAMP for Reinforcing Rod (Double-Lock Type)

Thời gian giao hàng: Vui lòng liên hệ 0988.324.548 / 0906.040.453
Tình trạng: Hàng mới 100%
Giá: Liên hệ
Hiệu lực giá bán:
  • Model: TVC-1L5
  • Tải trọng: 1 tấn
  • Đường kính thép phù hợp: 35-55mm
  • Khối lượng: 12 Kg
  • Xuất xứ: Nhật bản
  • Nhà sản xuất: Super Tool Co., Ltd

Tags:

Kẹp nâng thép thẳng đứng Supertool TVC-1L5 / TVC-1L5 Supertool VERTICAL LIFTING CLAMP for Reinforcing Rod (Double-Lock Type)

  • This clamp is for the safe vertical lifting and handling of pre-assembled reinforcing steel rods, irregular shaped steel bars and round bars.
  • When the clamp is high out of reach, the center lever type open lock can be operated with the remote control rope to lock the clamp into the open position.
  • The side stopper on the side of the body will engage when the remote control lever is moved to upward. The side stopper can prevent reinforcing rods from coming off due to pressure from the rods.
  • The special alloy steel cam is high-frequency quenched for maximum strength and durability.
  • When clamped onto a reinforced steel rod, the curved holding plates and the cam will generate a positive clamping force to securely hold the work piece.

    • Kẹp nâng thép thẳng đứng Supertool TVC-1L5 / TVC-1L5 Supertool VERTICAL LIFTING CLAMP for Reinforcing Rod (Double-Lock Type)

    Model TVC-1L5
    Applicable diameters (mm) φ35〜55
    Capacity 1 Ton
    Net weight 12 kg

    Kẹp nâng thép thẳng đứng Supertool TVC-1L5 / TVC-1L5 Supertool VERTICAL LIFTING CLAMP for Reinforcing Rod (Double-Lock Type) Instruction Manual
